The Technology

Modular Power.
Built to Scale.

Tritium’s modular, scalable, liquid-cooled power modules are the core of our approach to designing infrastructure that works across customer verticals, use cases, and varying geographies.

Power Modules

Two
Power Modules.

A 50 kW AC:DC module and a 25 kW DC:DC module. Both liquid-cooled, Silicon Carbide and bi-directional hardware capable. Backed by a 10-year power module warranty.

Tritium 50kW AC:DC Module

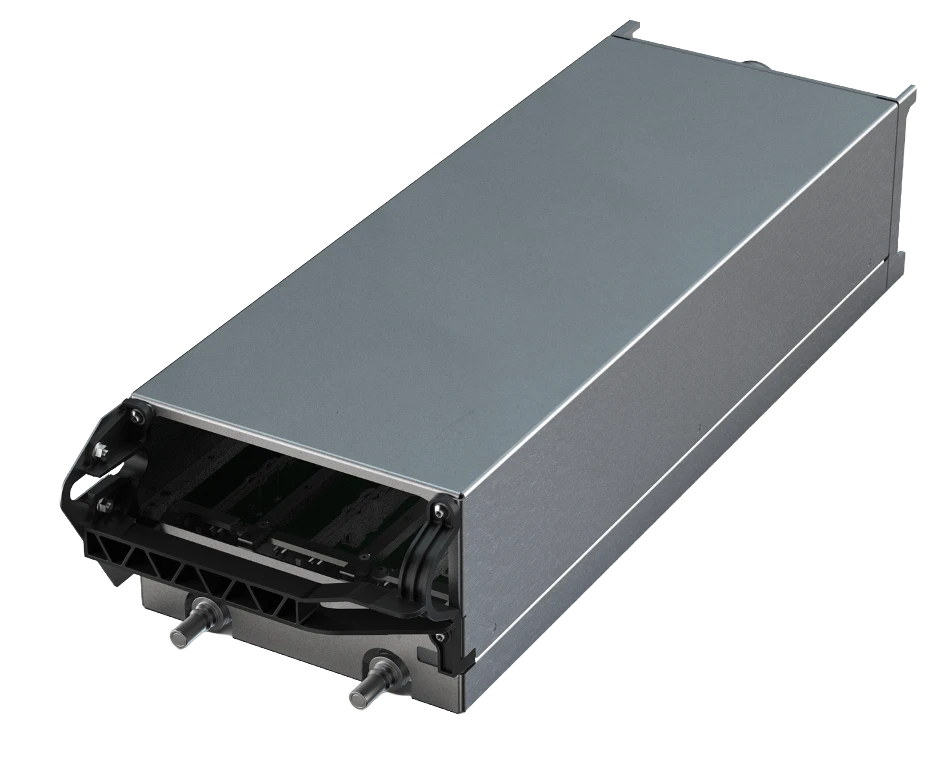

50 kW liquid-cooled AC:DC power module with quick-release coolant connectors

50kW Liquid-Cooled AC:DC Module

Silicon Carbide, high frequency switching. Six Switch PFC with Active Front End (AFE). Bi-directional. Modules are hardware capable.

98.5%
Peak efficiency
1.6MW
Scalable from 50 kW
17.2kg
37.9 lb
10-year
Power module warranty
Tritium 25kW DC:DC Module

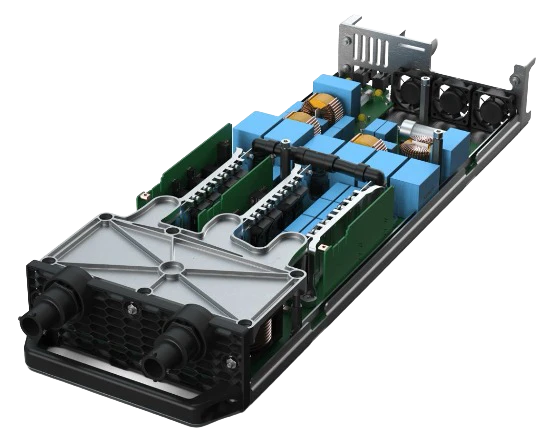

25 kW liquid-cooled DC:DC power module25 kW DC:DC module with lid removed exposing the dual-active-bridge electronics
Hover to look inside

25kW Liquid-Cooled DC:DC Module

Silicon Carbide, high frequency switching. Dual Active Bridge, galvanically isolated. Bi-directional. Modules are hardware capable.

99.1%
Peak efficiency
3.2MW
Scalable from 25 kW
7.5kg
16.5 lb
10-year
Power module warranty

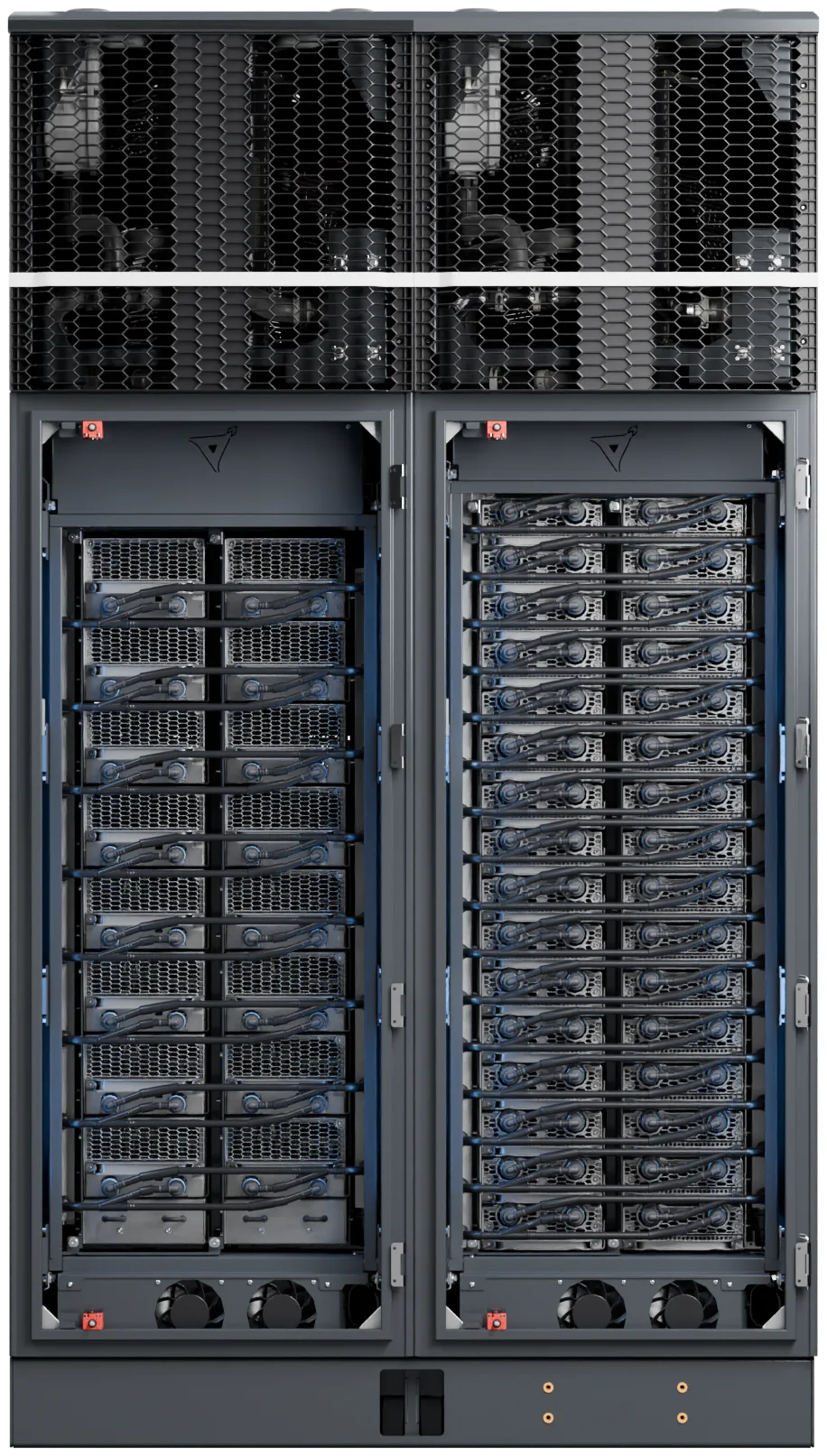

DC Power Unit with doors open: two bays of liquid-cooled power modules, 32 in total
Product Design

Weather Rated.
Compact and Efficient.

Enclosure design, component packaging and liquid cooling. All FLEX system components feature IP65 rated enclosures, a −35°C to +55°C (−31°F to +131°F) operational temperature range and 3000 m elevation support. Tritium products are renowned for being slim-line and highly space efficient. Advanced liquid cooling, a small component footprint, and high-density underground cable management make for easy installation.
